IP HIVIEW
HP-55A20PE
_____________________________________________
1/2.7” Aptina AR0237 CMOS Sensor
0.01 lux@F1.2, B/W 0.001lux@F1.2
Fixed Lens 3.6mm. (M12)
IR Array 2 Pcs.
IR Distance 10-30M. (Depend on install environment)
Video Compression H.264+, H.265+
Image Resolution 1080P,720P, D1, CIF, QCIF
HP-88A20ST
_____________________________________________
Infrared LED
HP-88A20ST มาพร้อมกับ Infrared led Array 2 ดวง
พร้อมมีตัว sensor ตรวจจับวัตถุได้ไกลถึง 40-50 เมตร
ปัจจุบันเทคโนโลยีการตรวจจับเพิ่มสูงขึ้นด้วยระบบ Smart IR
มีค่าความสว่างของแสงขั้นต่ำ 0.01 Lux (color picture)
HP-88B30PE
_____________________________________________
3 Mega pixel Bullet IP Camera 1/2.9" CMOS
Resolution 2048x1536 (3.14MP), 1920x1080P(2.07MP)
H.265+/H.264+ ,Lens 3.6mm , LED 25Pcs, 20-30M
Support POE , Support Audio input , Support IP6

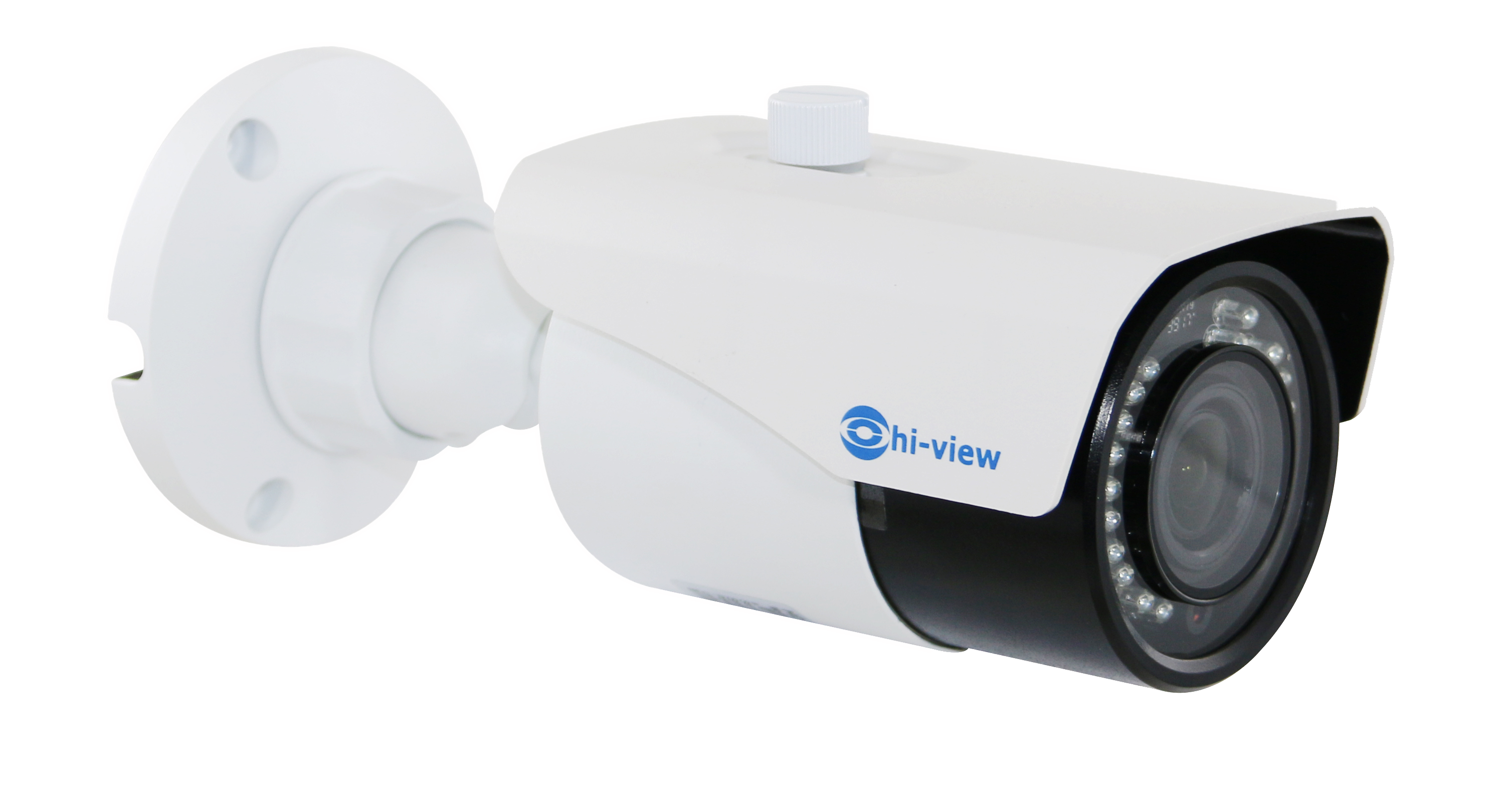

HP-97B20E2
_____________________________________________
1080P( 1920×1080 ) full real time coding
Max. r esol ut i on: 1920×1080
ICR aut o swi t ch, true day / ni ght
20 ~ 30m IR ni ght v i ew di st ance
3D DNR, d i gi t al WDR
ROI c odi ng
Support one- way audi o
Support PoE power s uppl y
Support smartphone, iPad, remot e moni t or i ng
I P66 ingr ess pr ot ect i on
Suppor t t hr ee st r eams
Hi-view IP Camera HP-97B20E2
HP-97B20E2V
_____________________________________________
1/2.7″ Aptina progressive scan CMOS sensor
1920x1080P (2.0MP)
Min. Illumination Color 0.05 lux@F1.2, AGC ON
01 Lux@F1.2, AGC ON
Focal Length 2.8-12mm./F1.4 / Fixed iris
LED IR LED 36 PCs. / 20-30M.
RJ45 x1 with POE / MIC IN x1
BNC x1 (CVBS video output) / Jack x1 (DC12V)
Ingress Protection IP66
12V DC. / PoE (IEEE802.3af)

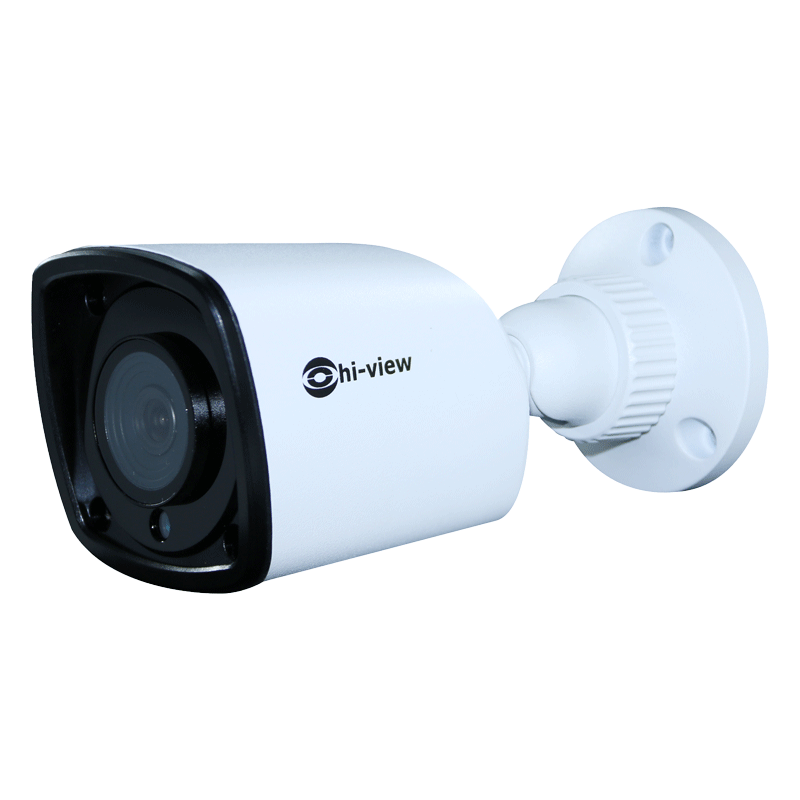

HP-97B20ST
_____________________________________________
1/2.7″ progressive scan CMOS sensor
1920x1080P (2.0MP)
Min. Illumination Color 0.022 lux@F1.8 , AGC ON
B/W 0 Lux with IR, @0.01 lux@F1.8, AGC ON
Shutter Speed 1/25s – 1/100,000S
Wide Dynamic Range 120 dB.
Angle AdjustmentPan: 0-355 ,Tilt: 0-67 ,Rotation: 0-355
Focal Length 3.6 mm. / LEDIR LED 16 Pcs / 10-20 M.
Supported Onvif / Ingress Protection IP66, IK10
TF-Card Support x1 (Max. 128 GB)
Power 12 V DC. / PoE (IEEE802.3af)

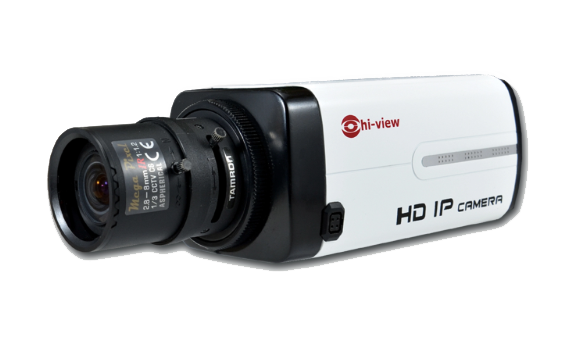

HP-97S40
_____________________________________________
กล้องวงจรปิดระบบ IP CAM 4 ล้าน พิกเซล Full HD รองรับการจ่ายไฟผ่าน POE
4MP (2592×1520) H.265 full real time coding
Max. resolution: 2592×1520
ICR auto switch, true day / night
3D DNR, physical WDR
Support HLC, BLC and defogging / ROI coding
Support SD card local storage, up to 128GB
Support CVBS video output and two-way audio
Support hardware reset
Support PoE power supply, AC 24V optional
Support smart phone, iPad, remote monitoring
Support P2P / Support three streams

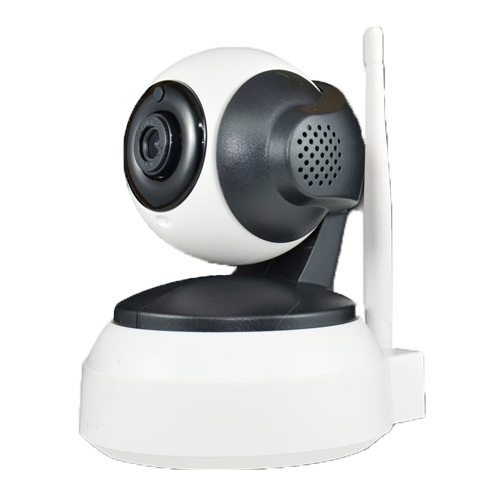

HP-ROBOT13
_____________________________________________
HP-ROBOT13
WIFI ROBOT Camera
1/3” SC1035 HI3518E – 1280X960P (1.3MP)
Fixed HD Lend 3.6mm.
IR LED 11Pcs, 0 Lux 10M with IR
D/N ICR (IR CUT), (Auto,B/W,Externel)
Support Cloud Online (hiviewonline.com)
2-Way-Audio / Alram / Mobile report
Pan 355 degree / Tilt 90 degree
Wifi 1×10/100Mbps, RJ45 interface
Support Max 32GB (TF Card storage)
HP-9632
_____________________________________________
PTZ CAM 3 Mega pixel (1920×1080)
1/28” SONY IMX124+HI3516D / Resolution 3.0MP
Optical zoom 20X F=5.5 – 110mm. / lllumination 0 Lux
Compression H.264/H.265 Support SD Max 128GB
HP-39P20SIR
_____________________________________________
1/2.8” Sony CMOS Image Sensor
Resolution 1080P (1920X1080P)
0.05 Lux (Color) (F1.6, AGC ON),
0.01 Lux (B/W) (F1.6, AGC ON)
Main stream:1920×1080, 1280X960, 1280X720
Sub stream:704×576, 352X288
Video Coding H.264/H.265
Lens f=4.9~98 mm / Optical Zoom 20x

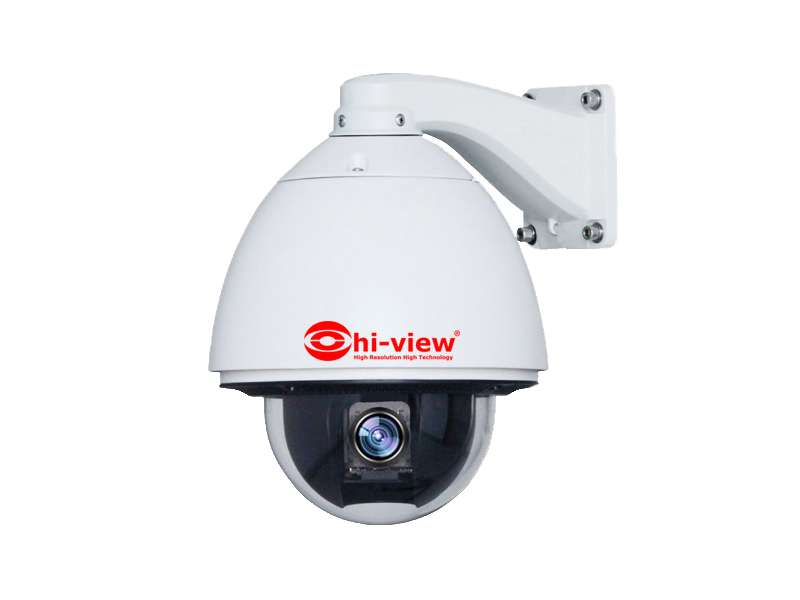

HP-39P20S
_____________________________________________
1/2.8″SonyIMX291progressivescanCMOSStarLight
ResolutoinMax.1920x1080P/2.0Megapixel
H.264/MJPEG
IRLED24pcs./3.6mm@F1.6/AngleofView85.8°
Color0.002Lux@F1.2,AGCON/Black/White0.0002Lux@F1.2,AGCON
IP66

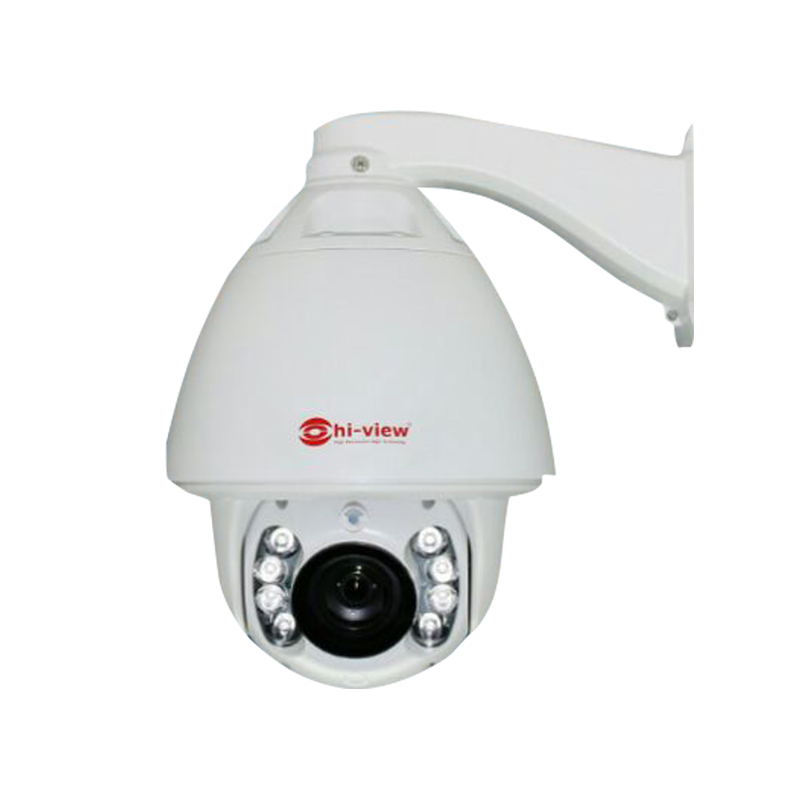

HP-39BP20IR3
_____________________________________________
1/2.8″ Progressive Scan CMOS
2.0 MP FULL HD-IP
100M IR Distance
All Cast Aluminium Material
Powerful 20x/30x optical zoom / Support ONVIF
Video Analysis Light-Adjustment Technology
Auto Tracking
IP 66 all-environments protection

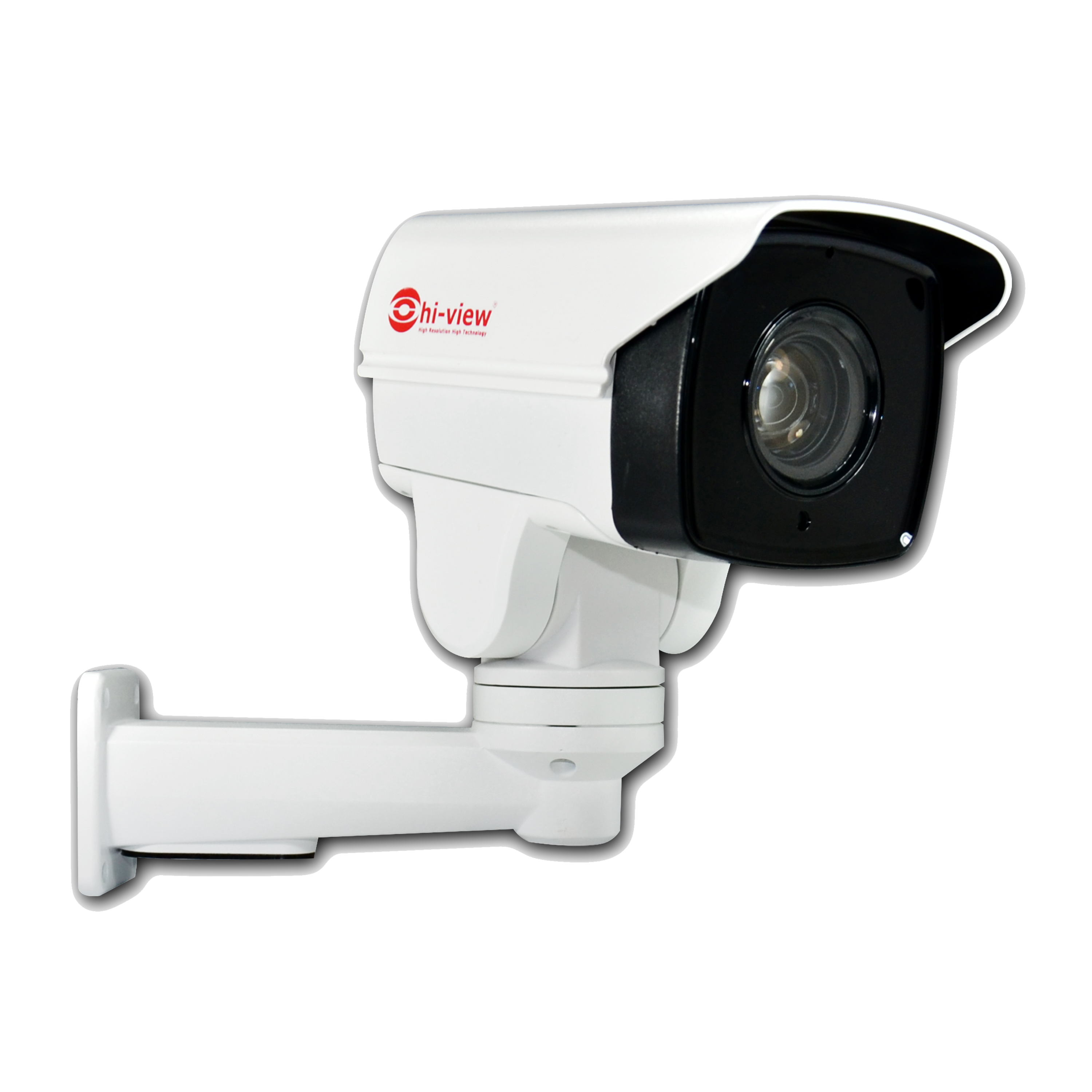

HP-39BPTZ20
_____________________________________________
1/2.8" Sony 222 Exmor Progressive Scan CMOS
10X Optical Zoom (5.1-51mm. lens)
Resolution 1080x1920 (2.0MP)
Pcs/IR Range 80M.
Onvif 2.2, 3D DNR, DWDR, ROI, ABF
FTP, UPnP, Email, Log, OSD, SDK
IP66, TVS4000V.

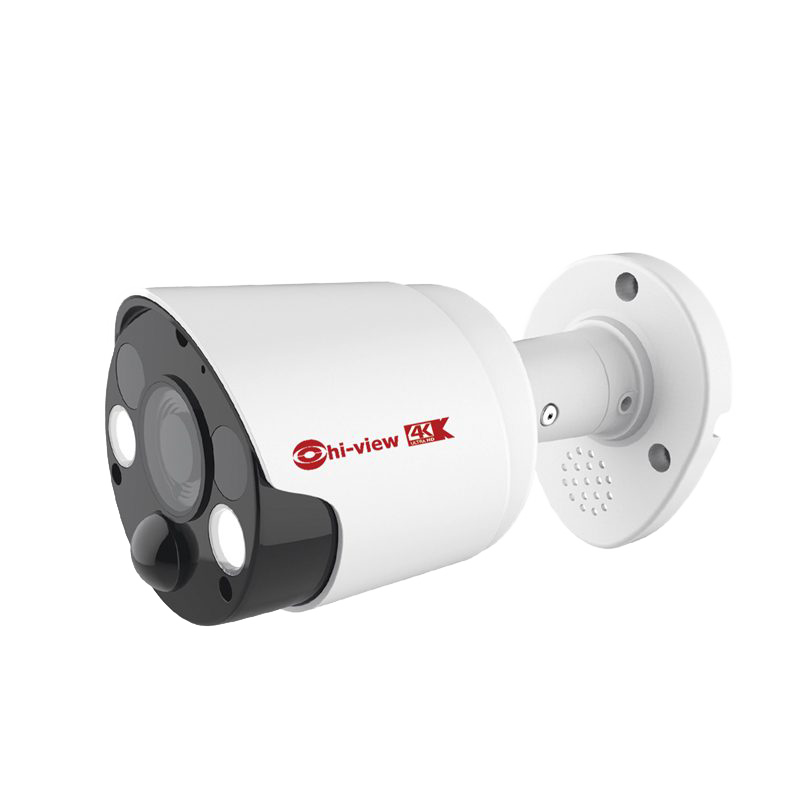

HP-78B80PE
_____________________________________________
1/2.3″ progressive scan CMOS
Pixels 3840(H)x2160(V), 8.0MP. / H.265, H.264
Min. Illumination Color 0.1lux @ F1.2(AGC ON)
B/W 0 lux @ IR ON
Stream Triple-Stream
Focal Length 3.6 mm
IR SMD 18 pcs., Up to 30M., Smart IR
IR CUT (IR Filters)
WDR, DEFOG, BLC,ATW, AGC, ROI, 3D-DNR,ONVIF2.6, P2P
Smart Intelligent Detection, Email alarm, Motion alarm
IP66 / Mic-Built-in
Power supply 12VDC/POE
HP-78B80PE/L
_____________________________________________
1/2.3″ progressive scan CMOS
Pixels 3840(H)x2160(V), 8.0MP. / H.265, H.264
Min. Illumination Color 0.1lux @ F1.2(AGC ON)
B/W 0 lux @ IR ON
Stream Triple-Stream
Focal Length 3.6 mm
2 Array IR (850nm), Up to 30M., Smart IR
Flood light Array x2 Pcs., Up to 10M
IR CUT (IR Filters)
WDR, DEFOG, BLC,ATW, AGC, ROI, 3D-DNR,ONVIF2.6,P2P
Smart Intelligent Detection, Email alarm, Motion alarm
IP66 / Mic-Built-in, Speaker-Built-in, TF-card, PIR Sensor

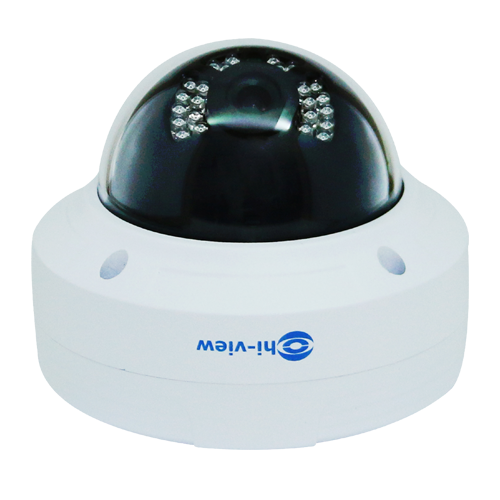

HP-97D20E2
_____________________________________________
1/2.7″ progressive scan CMOS sensor
1920x1080P (2.0MP)
Min. Illumination Color 0.022 lux@F1.8 , AGC ON
B/W 0 Lux with IR, @0.01 lux@F1.8, AGC ON
Shutter Speed 1/25s – 1/100,000S
Wide Dynamic Range 120 dB.
Angle AdjustmentPan: 0-355 ,Tilt: 0-67 ,Rotation: 0-355
Focal Length 3.6 mm. / LEDIR LED 16 Pcs / 10-20 M.
Supported Onvif / Ingress Protection IP66, IK10
TF-Card Support x1 (Max. 128 GB)
Power 12 V DC. / PoE (IEEE802.3af)
HP-97D20E2V
_____________________________________________
Dome IP Camera 2.0MP (PoE)
1/2.7” AR0230+Hisilicon, H.265/H.264, MJPEG
Image Size 1920×1080, Vari-focal Lens 2.8-21 mm.
IR Distance 10-20 M.
ROI,D-WDR, 2D-3DNR, Audio in x1, IP66 & IK 10

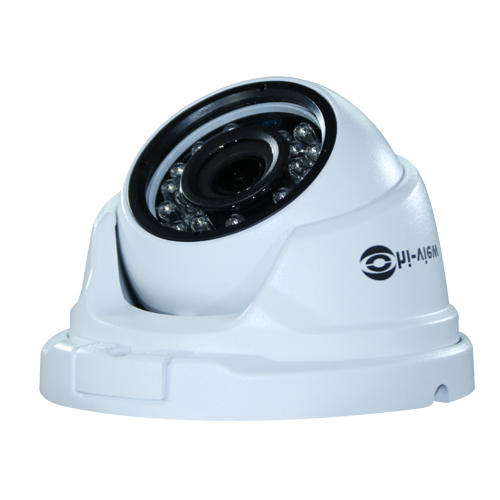

HP-88D30PE
_____________________________________________
3 Mega pixel Dome IP Camera 1/2.9" CMOS
Resolution 2048x1536 (3.14MP), 1920x1080P(2.07MP)
Support H.265+/H.264+ ,Lens 3.6mm , LED 25Pcs, 20-30M
Support POE , Support Audio input
สนใจสอบถามที่ E-mail:anupob@atthaya.com
Tel : 038144322
