HIKVISION



DS-2CD2T21G0-I

                        2 MP IR Fixed Bullet Network Camera

• 1/2.8" Progressive Scan CMOS

• 1920 × 1080@30fps

• 4/6 mm fixed lens

• Color: 0.01 Lux @ (F1.2, AGC ON),

• 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

• H.265+, H.265, H.264+, H.264

• 2 Behavior analysesIP67

• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB



DS-2CD2T23G0-I5

                         2 MP IR Fixed Bullet Network Camera

 • 1/2.8" Progressive Scan CMOS

 • 1920 ×1080@30fps

 • 2.8/4/6/8mm fixed lens

 • Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

 • H.265+, H.265, H.264+, H.264

 • Three streams

 • 120dB WDR

 • 2 Behavior analyses, and face detection

 • BLC/3D DNR/ROI/HLC

 • IP67

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

 • 3-Axis adjustment



DS-2CD2T23G0-I8

                         2 MP IR Fixed Bullet Network Camera

 • 1/2.8" Progressive Scan CMOS

 • 1920 ×1080@30fps

 • 2.8/4/6/8mm fixed lens

 • Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

 • H.265+, H.265, H.264+, H.264

 • Three streams

 • 120dB WDR

 • 2 Behavior analyses, and face detection

 • BLC/3D DNR/ROI/HLC

 • IP67

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

 • 3-Axis adjustment



DS-2CD1021-I

                       2.0 MP CMOS Network Bullet Camera

• 1/2.8" progressive scan CMOS

• Up to 2.0 megapixel

• 2.8 mm/4 mm/6 mm fixed focal lens

• Up to 30 m IR range

• Dual stream

• Digital WDR (Wide Dynamic Range)

• 3D DNR (Digital Noise Reduction)

• PoE (Power over Ethernet)

• IP67

• Mobile monitoring via Hik-Connect or iVMS-4500



DS-2CD1031-I

                       3.0 MP CMOS Network Bullet Camera


• 1/3" progressive scan CMOS

• Up to 3.0 megapixel

• 2.8mm/4mm/6mm fixed focal lens

• Up to 30 m IR range

• Dual stream

• Digital WDR (Wide Dynamic Range)

• 3D DNR (Digital Noise Reduction)

• PoE (Power over Ethernet)

• IP67

• Mobile monitoring via Hik-Connect or iVMS-4500





DS-2CD1041-I

                      4.0 MP CMOS Network Bullet Camera

• 1/3" progressive scan CMOS

• Up to 4.0 megapixel

• 2.8 mm/4 mm/6 mm fixed focal lens

• Up to 30 m IR range

• Dual stream

• Digital WDR (Wide Dynamic Range)

• 3D DNR (Digital Noise Reduction)

• PoE (Power over Ethernet)

• IP67

• Mobile monitoring via Hik-Connect









DS-2CD1621FWD-I/IZ (2MP)

                        2.0 MP CMOS Vari-Focal Network Bullet Camera

• 1/2.8" progressive scan CMOS

• Up to 2.0 megapixel

• 2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens

• Up to 30 m IR range

• Dual stream

• 120 dB WDR (Wide Dynamic Range)

• 3D DNR (Digital Noise Reduction)

• PoE (Power over Ethernet)

• IP67

• Mobile monitoring via Hik-Connect or iVMS-4500







DS-2CD1631FWD-I/IZ (3MP)

                           3.0 MP CMOS Vari-Focal Network Bullet Camera

• 1/3" progressive scan CMOS

• Up to 3.0 megapixel

• 2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens

• Up to 30 m IR range

• Dual stream

• 120 dB WDR (Wide Dynamic Range)

• 3D DNR (Digital Noise Reduction)

• PoE (Power over Ethernet)

• IP67

• Mobile monitoring via Hik-Connect or iVMS-4500











DS-2CD2021-IAX

                              2 MP IR Fixed Bullet Network Camera

 • 1/2.8" Progressive Scan CMOS

 • 1920 × 1080@30fps

 • 2.8/4/6/8 mm fixed lens

 • Color: 0.01 Lux @ (F1.2, AGC ON),

 • 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

 • H.265+, H.265, H.264+, H.264

 • 2 Behavior analyses

 • IP67

 • 3-Axis adjustment





DS-2CD2025FWD-I

                              2 MP IR Fixed Bullet Network Camera

 • Up to 2 megapixel high resolution

 • Max. 1920 × 1080 @30fps

 • 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional

 • Powered by Darkfighter

 • H.265, H.265+, H.264+, H.264

 • 120dB Wide Dynamic Range

 • 3D Digital Noise Reduction

 • DC12V & PoE (802.3af)

 • IR range: up to 30 m

 • Support on-board storage, up to 128 GB

 • IP67











DS-2CD2621G0-I

                         2 MP IR Vari-focal Blulet Network Camera

 • 1/2.8" Progressive Scan CMOS

 • 1920 × 1080@30fps

 • 2.8 mm to 12 mm varifocal lens

 • Color: 0.01 Lux @ (F1.2, AGC ON),

 • H.265, H.265+, H.264+, H.264

 • 120dB WDR

 • BLC/3D DNR/ROI

 • IP67

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB



DS-2CD2623G0-IZS

                         2 MP IR Vari-focal Bullet Network Camera

 • 1/2.8" Progressive Scan CMOS

 • 1920 ×1080@30fps

 • 2.8 to 12 mm varifocal lens

 • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

 • H.265+, H.265, H.264+, H.264

 • Three streams

 • 120dB WDR

 • 2 Behavior analyses, and face detection

 • BLC/3D DNR/ROI/HLC

 • IP67, IK10

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

 • 3-Axis adjustment



DS-2CE16U1T-IT5F

                            8 MP Bullet Camera

•    8.29 Megapixel high-performance CMOS

•    3840 × 2160 resolution

•     3.6 mm, 6 mm 8mm 12mm fixed focal lens

•   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

•    EXIR 2.0, smart IR, up to 80m IR distance

•    IP67

•    Up the Coax(HIKVISION-C)





DS-2CE17U8T-IT

                          4K Ultra-Low Light Bullet Camera

•    8.29 Megapixel high-performance CMOS

•    Ultra-low light

•    3840 × 2160 resolution

•    2.8 mm, 3.6 mm, 6 mm fixed focal lens

•    120 dB true WDR, 3D DNR

•    EXIR 2.0, smart IR, up to 40m IR distance

•    IP67

•    Up the Coax(HIKVISION-C)







DS-2CE19U1T-(A)IT3ZF

                            8 MP Bullet Camera

•  8.29 Megapixel high-performance CMOS

•  Auto focus

•  3840 × 2160 resolution

•  2.7 mm to 13.5 mm motorized vari-focal lens

•  EXIR 2.0, smart IR, up to 80m IR distance

•  OSD menu, DNR

•  4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

•  IP67

•  Up the Coax(HIKVISION-C)







DS-2CE79U8T-IT3Z

                             4K Ultra-Low Light VF Turret Camera

•  8.29 Megapixel high-performance CMOS

•  Ultra-low light

•  3840 × 2160 resolution

•  Auto focus, 2.8 mm to 12 mm motorized vari-focal lens

•  120 dB true WDR, 3D DNR

•  EXIR 2.0, smart IR, up to 80m IR distance

•  Dual video output: TVI/CVBS

•  IP67

•  Up the Coax(HIKVISION-C)



DS-2CD1123G0E-I



• 1/2.8" progressive scan CMOS

• 3D DNR (Digital Noise Reduction)

• 1920 × 1080@30fps

• Up to 30 m IR range

• 2.8 mm/4 mm/6 mm fixed lens

• PoE (Power over Ethernet)

• H.265+, H.265, H.264+, H.264

• IP67, IK10

• Dual stream

• Digital WDR (Wide Dynamic Range)

 DS-2CD2121G0-I/IS/IW

                     2.0 MP IR Fixed Dome Network Dome Camera

 • 1/2.8" Progressive Scan CMOS

 • 1920 × 1080@30fps

 • 2.8/4/6 mm fixed lens

 • Color: 0.01 Lux @(F1.2, AGC ON),

 • 0.028Lux @(F2.0, AGC ON);

 • H.265+, H.265, H.264+, H.264

 • Digital WDR

 • 2 Behavior analyses

 • BLC/3D DNR/ROI

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB





DS-2CD2123G0-I(S)

                         2 MP IR Fixed Dome Network Camera

 • 1/2.8" Progressive Scan CMOS

 • 1920 ×1080@30fps

 • 2.8/4/6/8mm fixed lens

 • Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

 • H.265+, H.265, H.264+, H.264

 • Three streams

 • 120dB WDR

 • 2 Behavior analyses, and face detection

 • BLC/3D DNR/ROI/HLC

 • IP67, IK10

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB



 • 3-Axis adjustment



DS-2CD1723G0-IZ

                           2.0 MP VF Network Bullet Camera

• 1/2.8" progressive scan CMOS

• 1920 × 1080@30fps

• 2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens

• PoE (Power over Ethernet)

• IP67, IK10

• H.265+, H.265, H.264+, H.264

• Dual stream

• Digital WDR (Wide Dynamic Range)

• 3D DNR (Digital Noise Reduction)



• Up to 30 m IR range





DVR

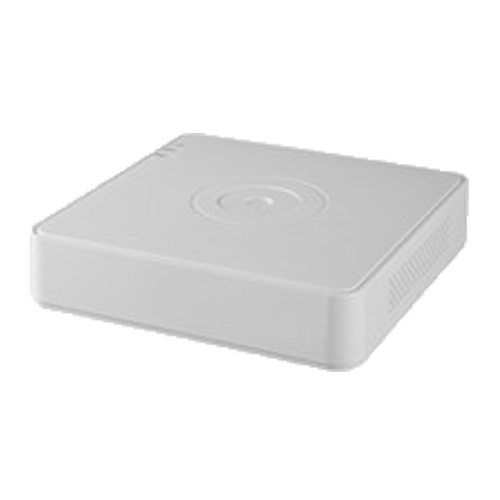

DS-7104/7108HUHI-K1

Turbo HD DVR

• Support H.265 Pro+/H.265 Pro/H.265 video compression

• Support HDTVI/AHD/CVI/CVBS/IP video input.

• Max 8/16 IP cameras input (up to 8 MP).

• Max 800 m for 1080p and 1200 m for 720p HDTVI signal.

• Up to 6 TB capacity per HDD.







DS-7304/7308/7316HQHI-K4

Turbo HD DVR

• Support H.265 Pro+/H.265 Pro/H.265 video compression

• Support HDTVI/AHD/CVI/CVBS/IP video input.

• Max 6/12/24 IP cameras input (up to 6 MP).

• Max 800 m for 1080p and 1200 m for 720p HDTVI signal.

• Up to 10 TB capacity per HDD.



• Support POS triggered recording and POS information overlay.





DS-7204/7208/7216HUHI-K2

Turbo HD DVR

• Support H.265 Pro+/H.265 Pro/H.265 video compression

• Support HDTVI/AHD/CVI/CVBS/IP video input

• Max. 8/16/32 IP cameras input (up to 8 MP)

• Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission



• Up to 10 TB capacity per HDD





DS-7324/7332HQHI-K4

Turbo HD DVR

• Support H.265 Pro+/H.265 Pro/H.265 video compression

• Support HDTVI/AHD/CVI/CVBS/IP video input

• Max. 40/48 IP cameras input (up to 6 MP)

• Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission



• Up to 10 TB capacity per HDD





DS-7208/7216HQHI-K2

Turbo HD DVR

•Support H.265 Pro+/H.265 Pro/H.265 video compression

• Support HDTVI/AHD/CVI/CVBS/IP video input

• Max. 12/24 IP cameras input (up to 6 MP)

• Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission

•Up to 10 TB capacity per HDD

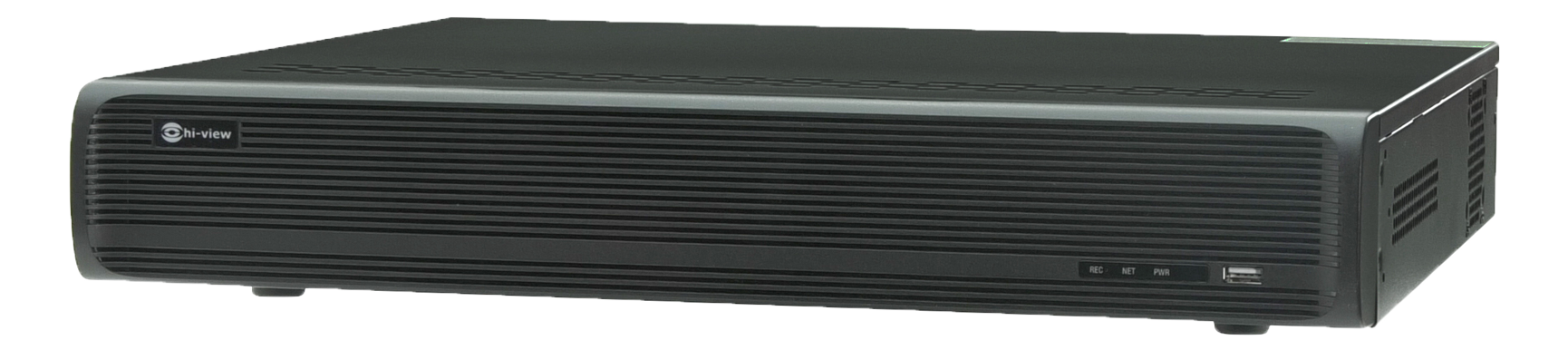

HA-45532H4



 DVR 5-in-1 (AHD, CVI, TVI, CVBS, IPC),

 H.265 high profile (32+8=40CH)

 Resolution AHD/TVI: 5MP lite, 4MP lite, 2MP, 2MP lite, 720P, 960H, WD1

• Resolution CVI:4MP, 3MP, 1080P, 720P,WD1

 Recording

   AHD:1280x1936@10fps.,

   AHD/CVI/TVI: 1920x1080P@12fps,

   AHD/CVI/TVI:1280x720@25fps.,

   CVBS: 960x576@25fps

   TVI: 1280x1936@10fps.,

   CVI:1280x1440@12fps

 +IPC x8 (Max.5MP@30fps)

 BNCx32, HDMIx1, VGAx1, CVBSx1, Audio in x16, Audio out x1, Alarm in x16, Alarm out x4, RJ45x1, USBx2

 HDD x4 (Max. 40Tb.), e-SATA x1

 Bandwidth 88/160 Mbps(access/transfer)

 N9000 menu,Cloud P2P (QRCODE), POS, intelligent smart playback

• Power Suppply DC12V/2000mA

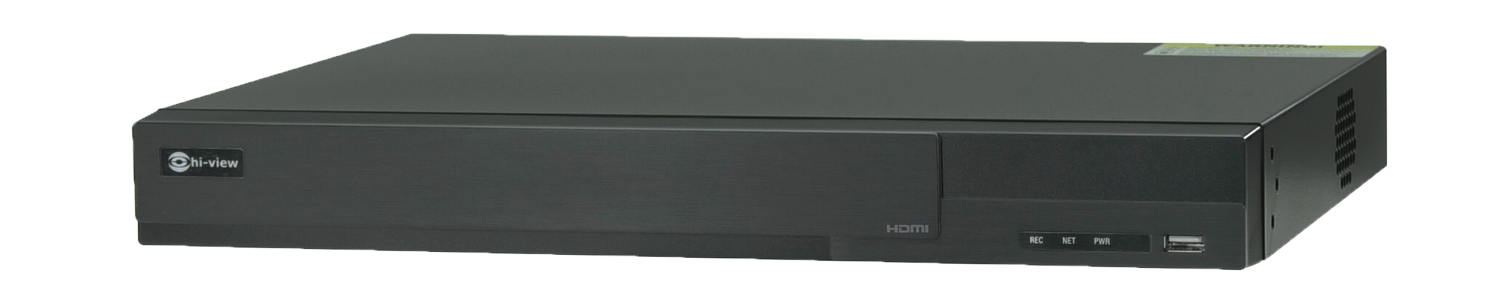

HA-45516H2



• DVR 5-in-1 (AHD, CVI, TVI, CVBS, IPC),

• H.265 high profile (16+8=24CH)

• Resolution AHD/TVI: 5MP lite, 4MP lite, 2MP, 2MP lite, 720P, 960H, WD1

• Resolution CVI:4MP, 3MP, 1080P, 720P,WD1

• Recording AHD:1280x1936@10fps.,

   AHD/CVI/TVI: 1920x1080P@12fps,

   AHD/CVI/TVI:1280x720@25fps.,

   CVBS: 960x576@25fps

   TVI: 1280x1936@10fps.,

   CVI:1280x1440@12fps

• +IPC x8 (Max.5MP@30fps)

• BNCx16, HDMIx1, VGAx1, CVBSx1, Audio in x8, Audio out x1, Alarm in x16, Alarm out x4, RJ45x1, USBx2

• HDD x2 (Max. 20Tb.), e-SATA x1

• Bandwidth 32/96 Mbps(access/transfer)

• N9000 menu,Cloud P2P (QRCODE), POS, intelligent smart playback"

• Power Suppply DC12V/2000mA







HA-54508

• Video system 5-in-1 (AHD,TVI, CVI,CVBS,IPC)

• Video compression H.264+

• Audio compression G.711A

• Video standard PAL / NTSC

• Video Resolution input Support AHD 4.0MP

• HDD SATA x1 (Max.10TB)

• Backup Mode Network, USB hard Disk, USB Burnner, SATA burnner

• Backup Format H.264, AVI

• DDNS Support hiview DDNS, CN99, Dyndns, Oray, NO-IP

  Cloud Support Cloud P2P

• Mobile monitoring Support iOS&Android

• Cloud website http://hiviewxview.com/index

• USB Wireless Supported RT3070, MTK7610

• 3G/4G USB aircard Supported

• PTZ Protocol PeclcoD, PelcoP Etc.

• RJ45 x1 (100Mbps self-adaptive)

• USB 2.0 x3 / RS485 x1 / Audio Input x4 / Audio Output x1

• Power input x1 (DC12V)

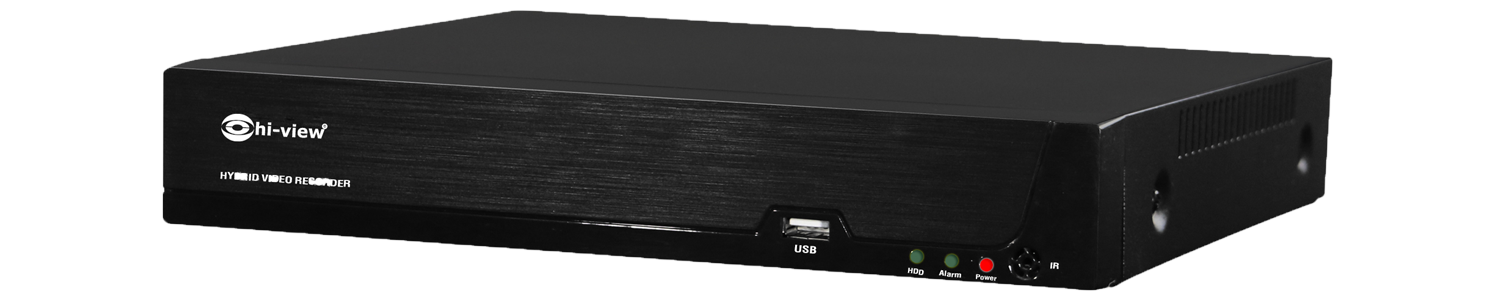

HA-54504

• Video system 5-in-1 (AHD,TVI,CVI,CVBS,IPC)

• Video compression H.264+

• Audio compression G.711A

• Video standard PAL / NTSC

• Video Resolution input Support AHD 4.0MP

• HDD SATA x1 (Max.10TB)

• Backup Mode Network, USB hard Disk, USB Burnner, SATA burnner

• Backup Format H.264, AVI

• DDNS Support hiview DDNS, CN99, Dyndns, Oray, NO-IP

  Cloud Support Cloud P2P

• Mobile monitoring Support iOS&Android

• Cloud website http://hiviewxview.com/index

• USB Wireless Supported RT3070, MTK7610

• 3G/4G USB aircard Supported

• PTZ Protocol PeclcoD, PelcoP Etc.

• RJ45 x1 (100Mbps self-adaptive)

• USB 2.0 x3 / RS485 x1 / Audio Input x4 / Audio Output x1

• Power input x1 (DC12V)

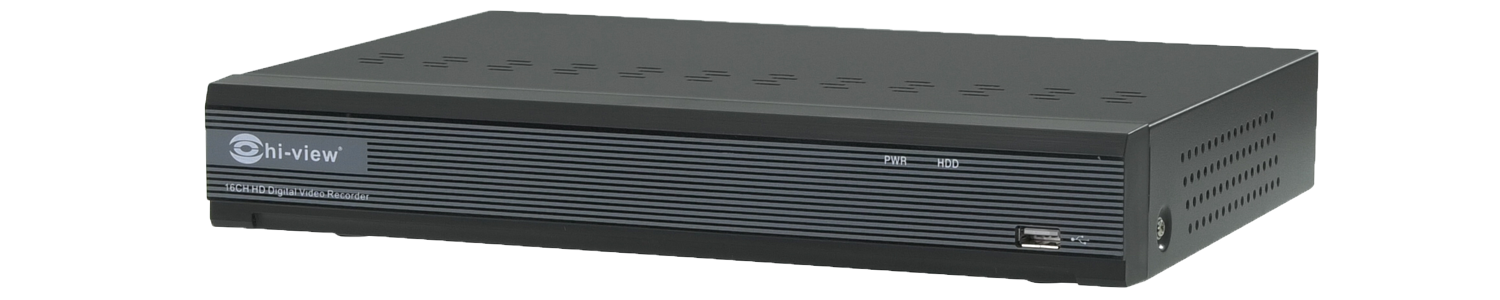

HA-75516P



•  H.265/H.264 XVR 5-in-1 (AHD/TVI/CVI/CVBS/IPC)

• 16CH+IPC 5MPx8CH = 24CH

•  Resolution 5MP, 4MP, 2MP, 1MP, 960H

•  BNC x16, Audio in x4, Audio out x1, HDD x1 (Max. 10TB)

•  HDMI x1 (4K), VGAx1, RJ45 x1, RS485 x1, USB2.0 x1, USB3.0 x1

•  Triple stream, P2P, Dropbox, Smart Search, OTA, 3G, USB Wi-Fi, IE, CMS, Mobile app (hiviewHD)

•  PIR alarm, Intelligent alarm, FTP alarm, Email alrarm, Push alarm, Hiview DDNS, ONVIF 2.6

•  Power supply DC12V/3A

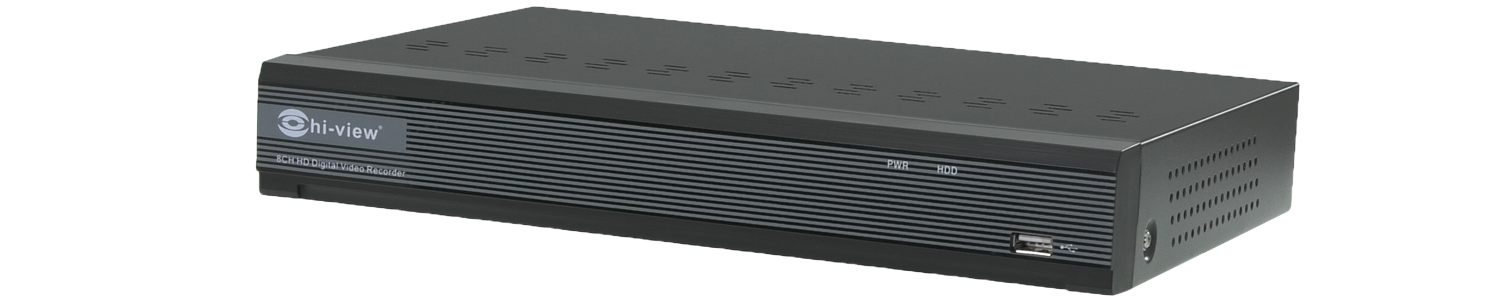

HA-75508P

• H.265/H.264 XVR 5-in-1 (AHD/TVI/CVI/CVBS/IPC)

• 8CH+IPC 5MPx4CH = 12CH

• Resolution 5MP, 4MP, 2MP, 1MP, 960H

• BNC x8, Audio in x4, Audio out x1, HDD x1 (Max. 10TB)

• HDMI x1 (4K), VGAx1, RJ45 x1, RS485 x1, USB2.0 x2

• Triple stream, P2P, Dropbox, Smart Search, OTA, 3G, USB Wi-Fi, IE, CMS, Mobile app (hiviewHD)

• PIR alarm, Intelligent alarm, FTP alarm, Email alrarm, Push alarm, Hiview DDNS, ONVIF 2.6

• Power supply DC12V/3A













  สนใจสอบถามที่ E-mail:anupob@atthaya.com

ID Line : anupob.ung

 Tel : 038144322
